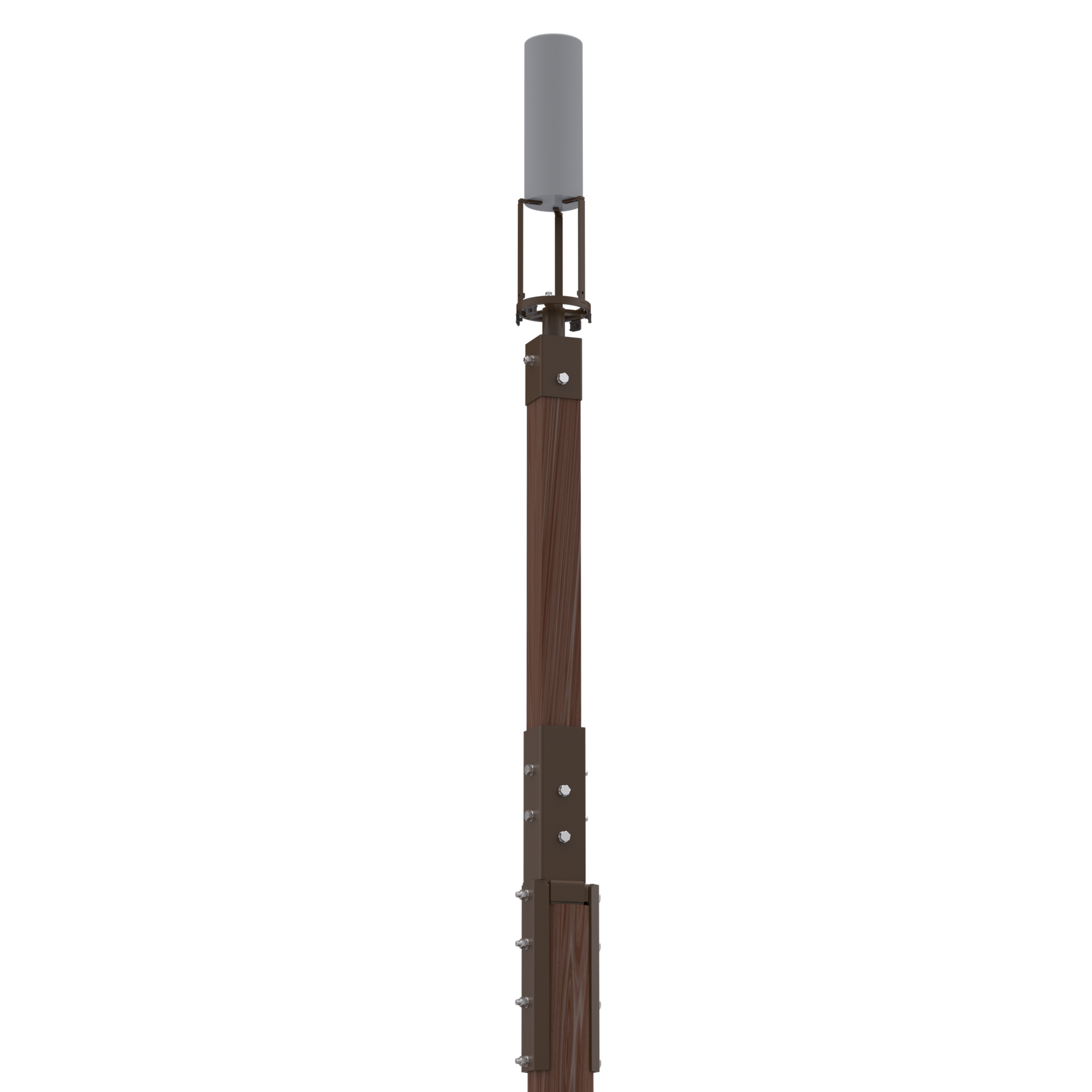

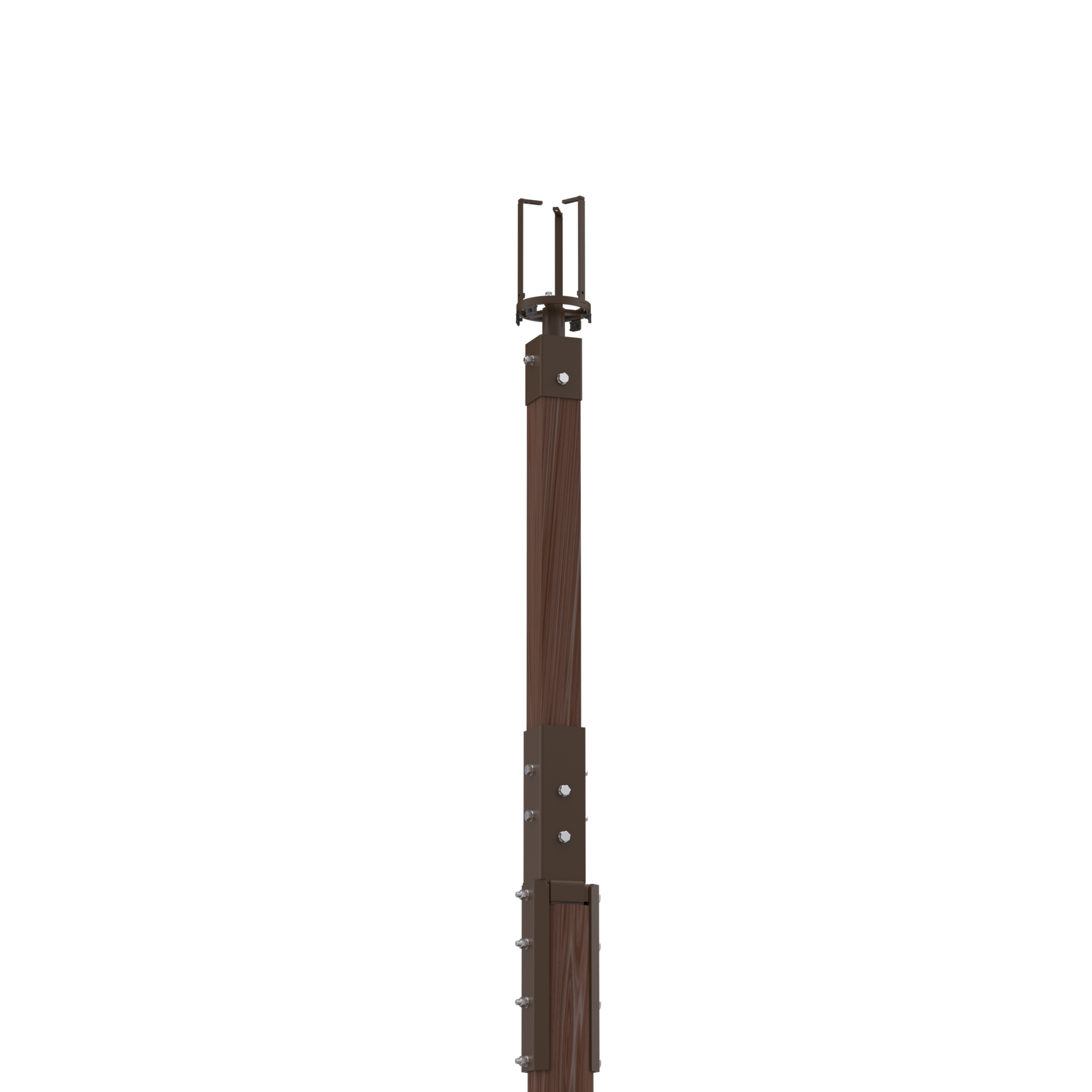

Assembly includes:

• Utility grade wood pole mount
• 6" x 6" x 6' bayonet wood riser
• 6" x 6" wood bayonet adapter
• Upper antenna cage.
• Attachment hardware included

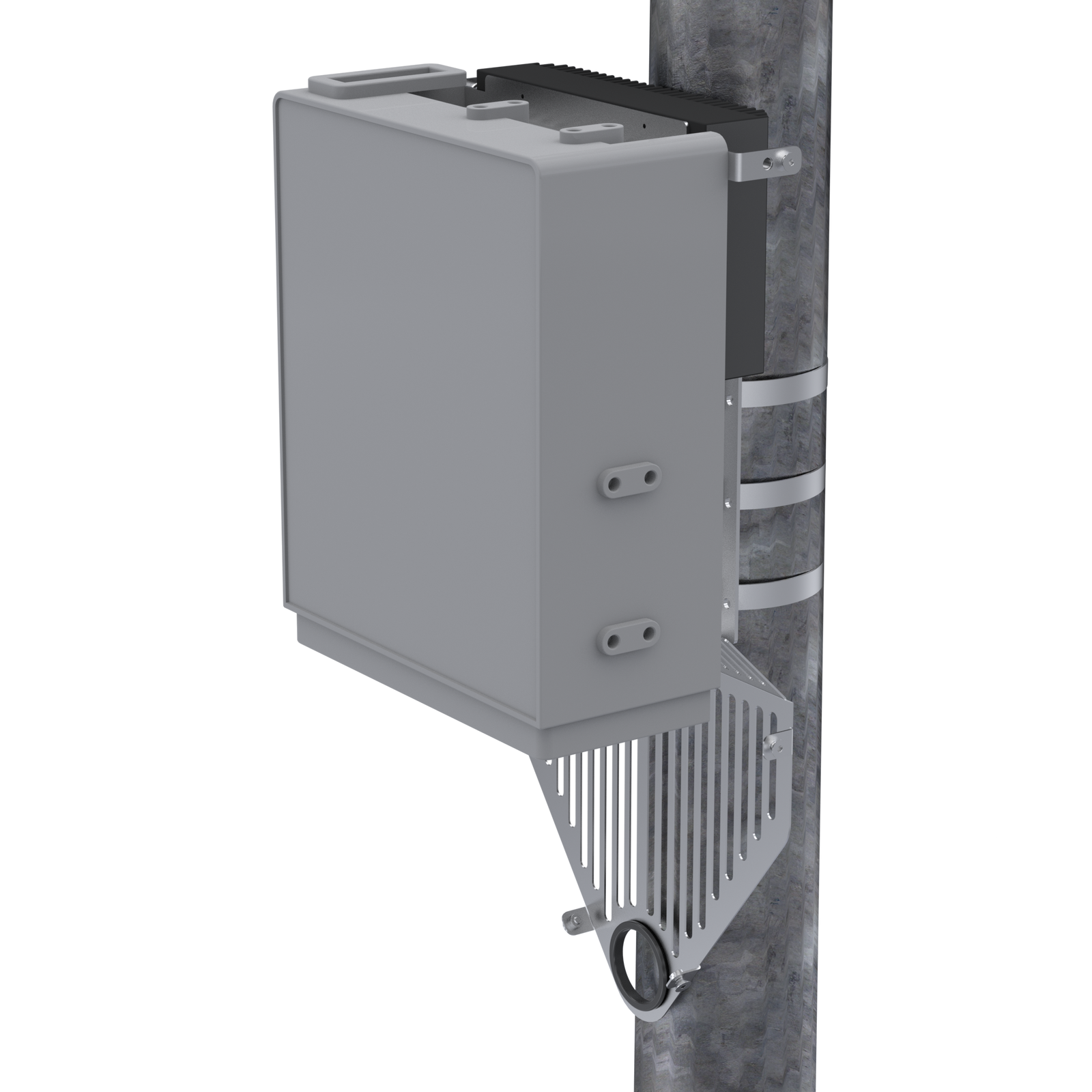

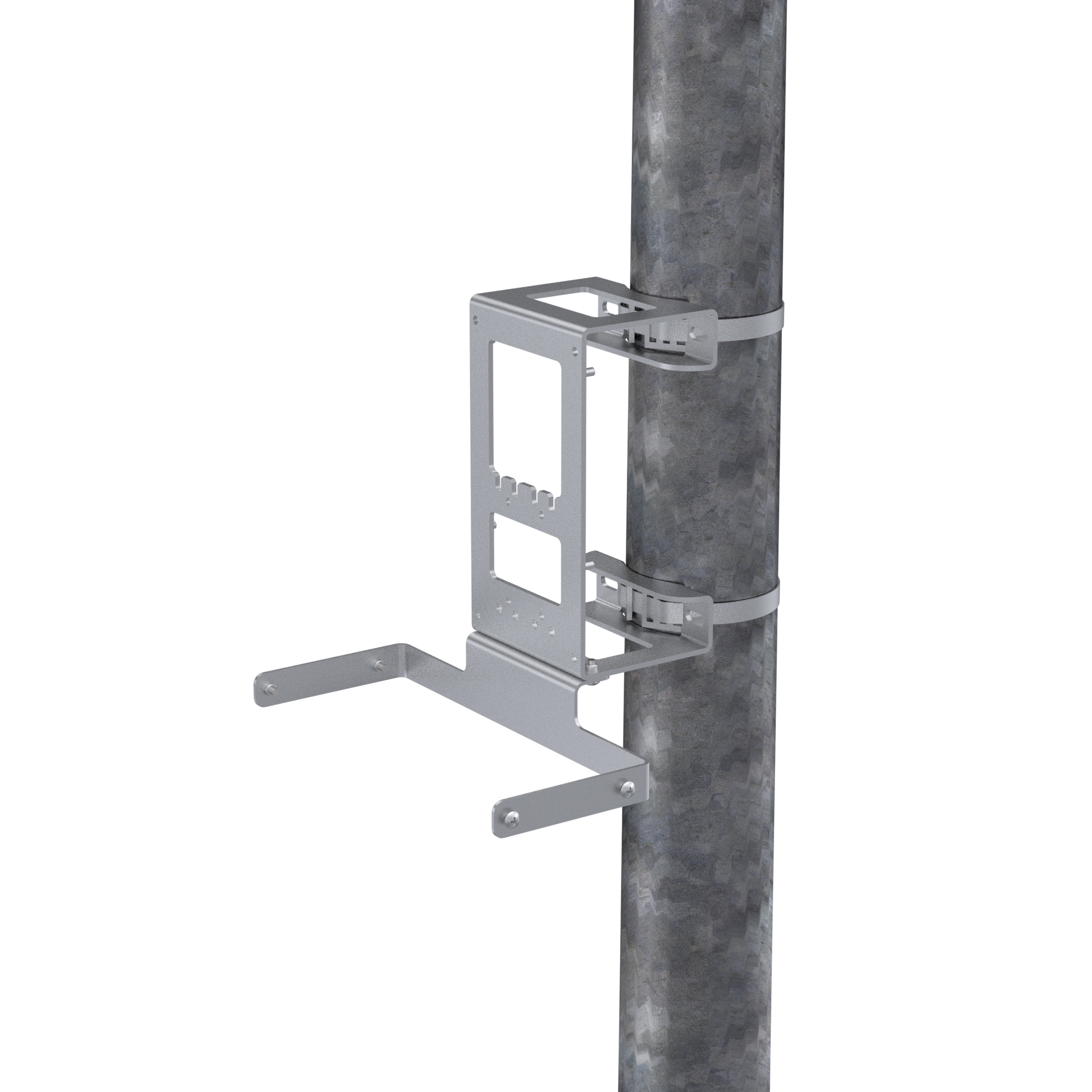

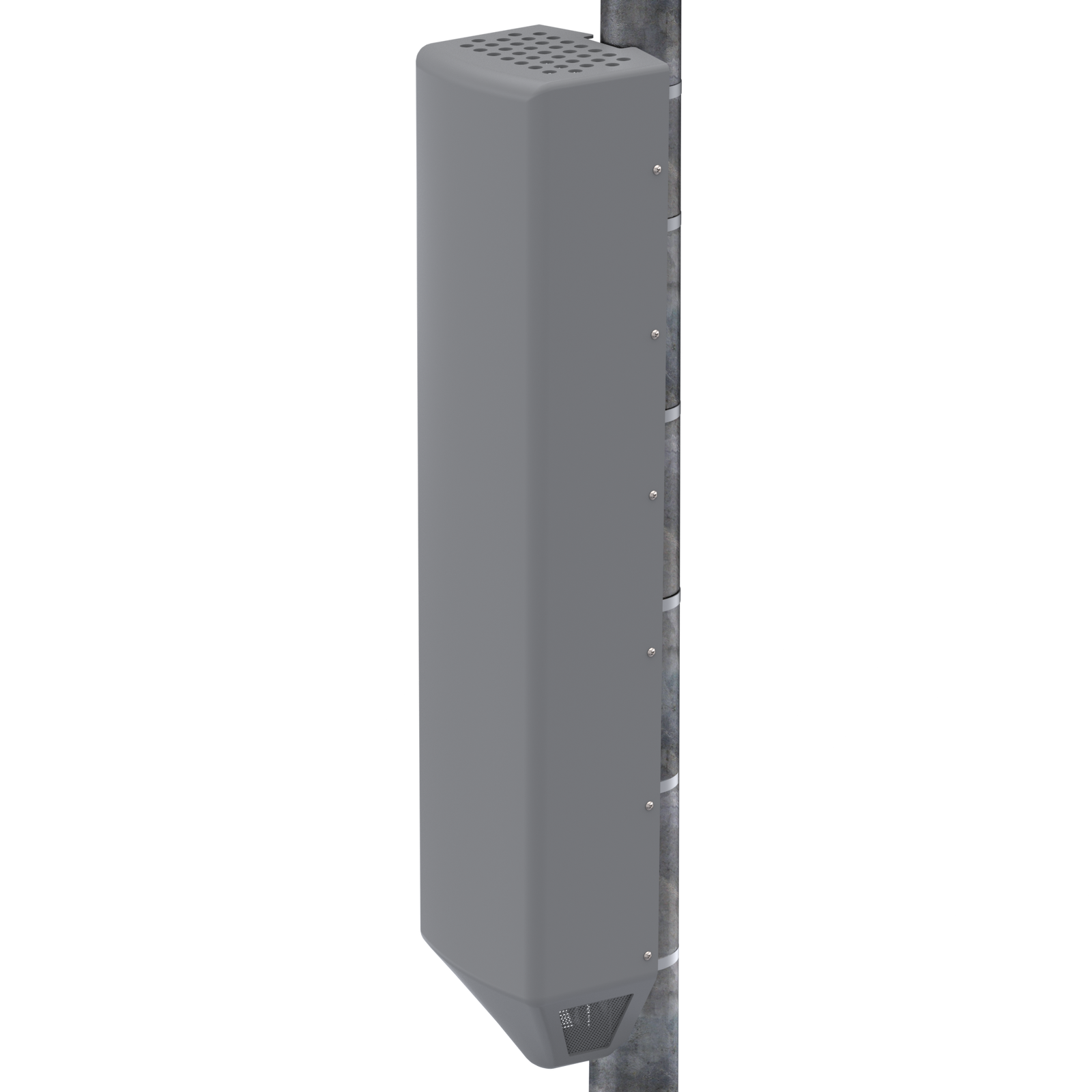

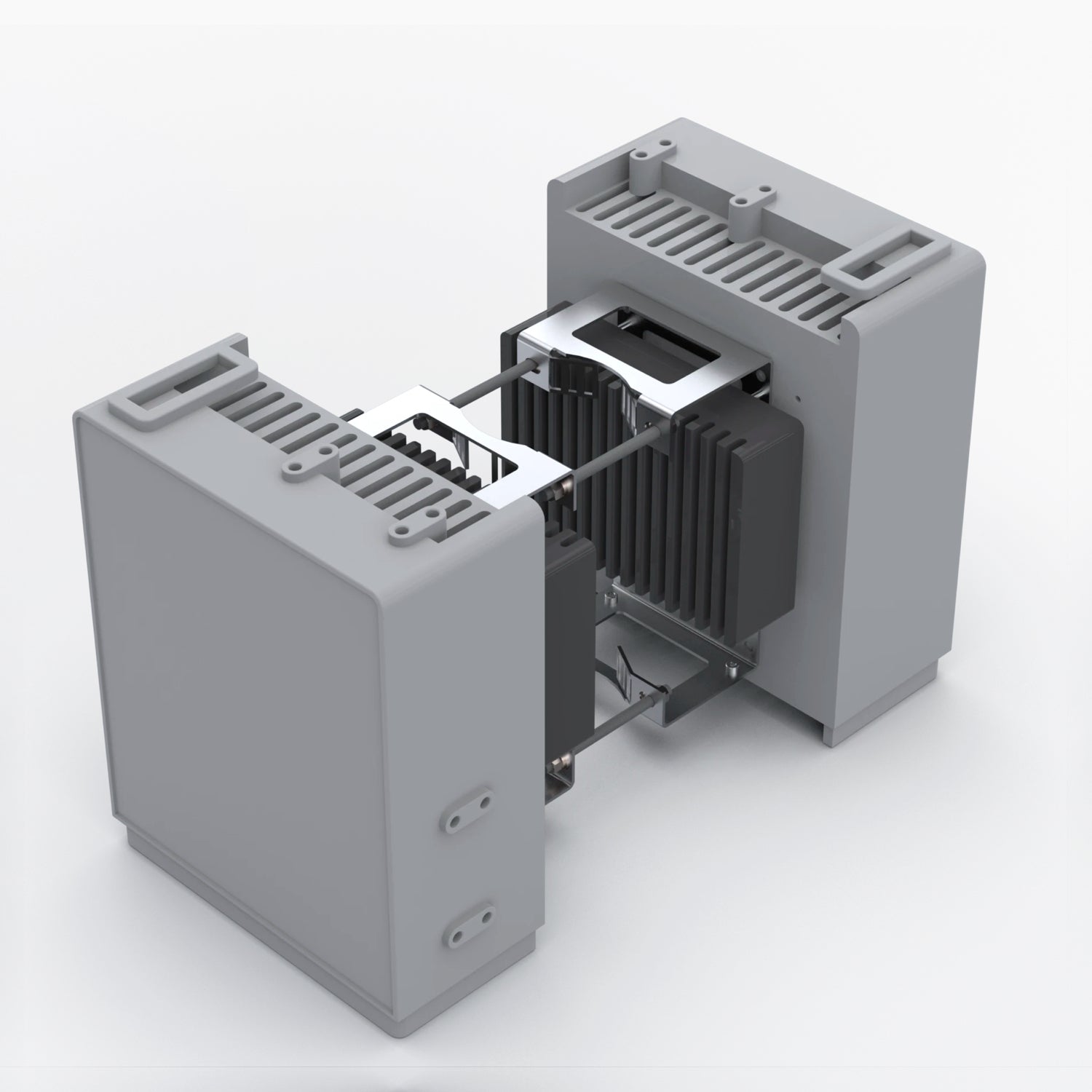

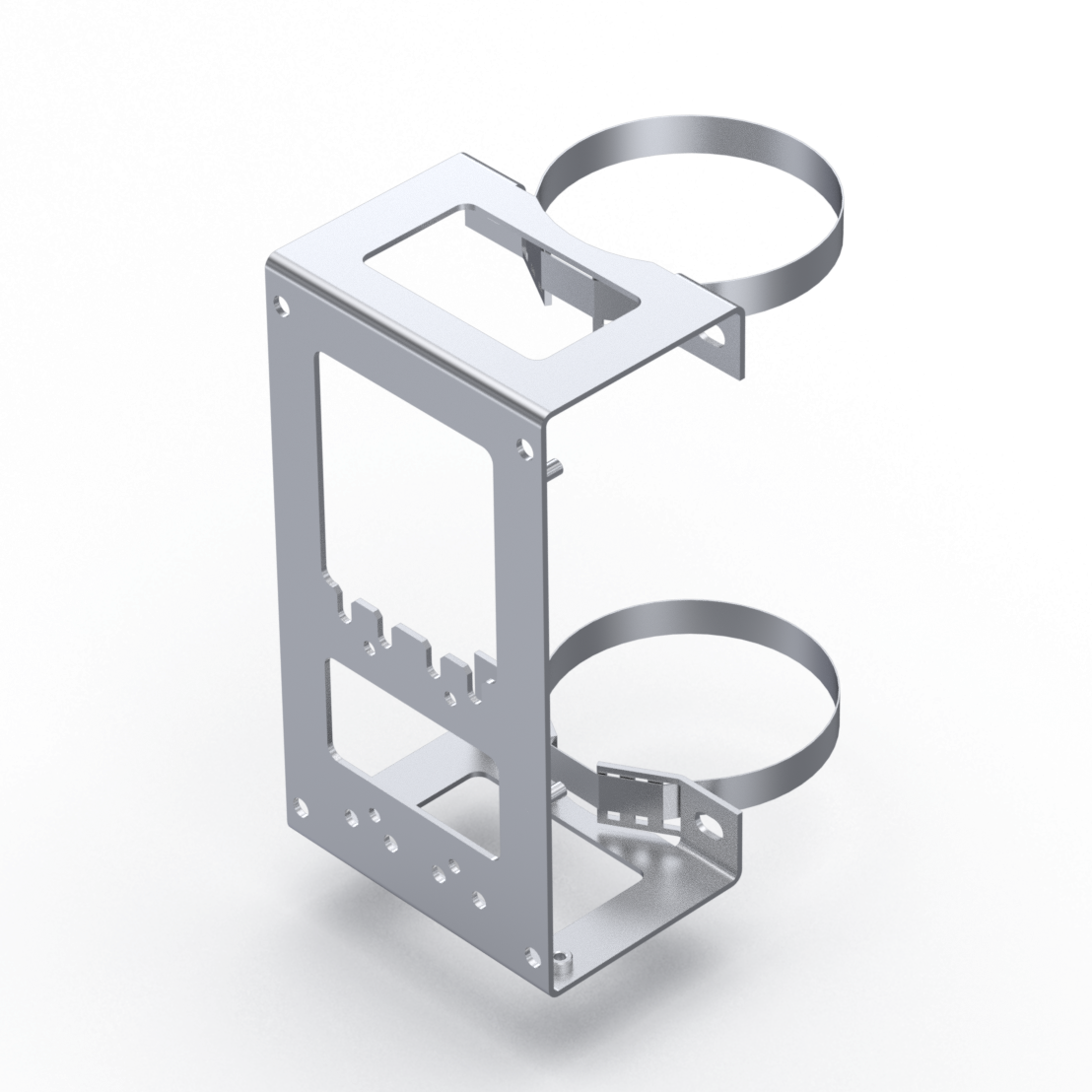

Our 12" x 6 1/2" stainless steel mount can be mounted in single, double or triple radio configurations with all hardware needed for easy installation on just about any pole. The four standoff posts provide easy installation of the PSU concealed behind the radio. Can be installed with 3/4" band straps or 3/8" threaded rod.

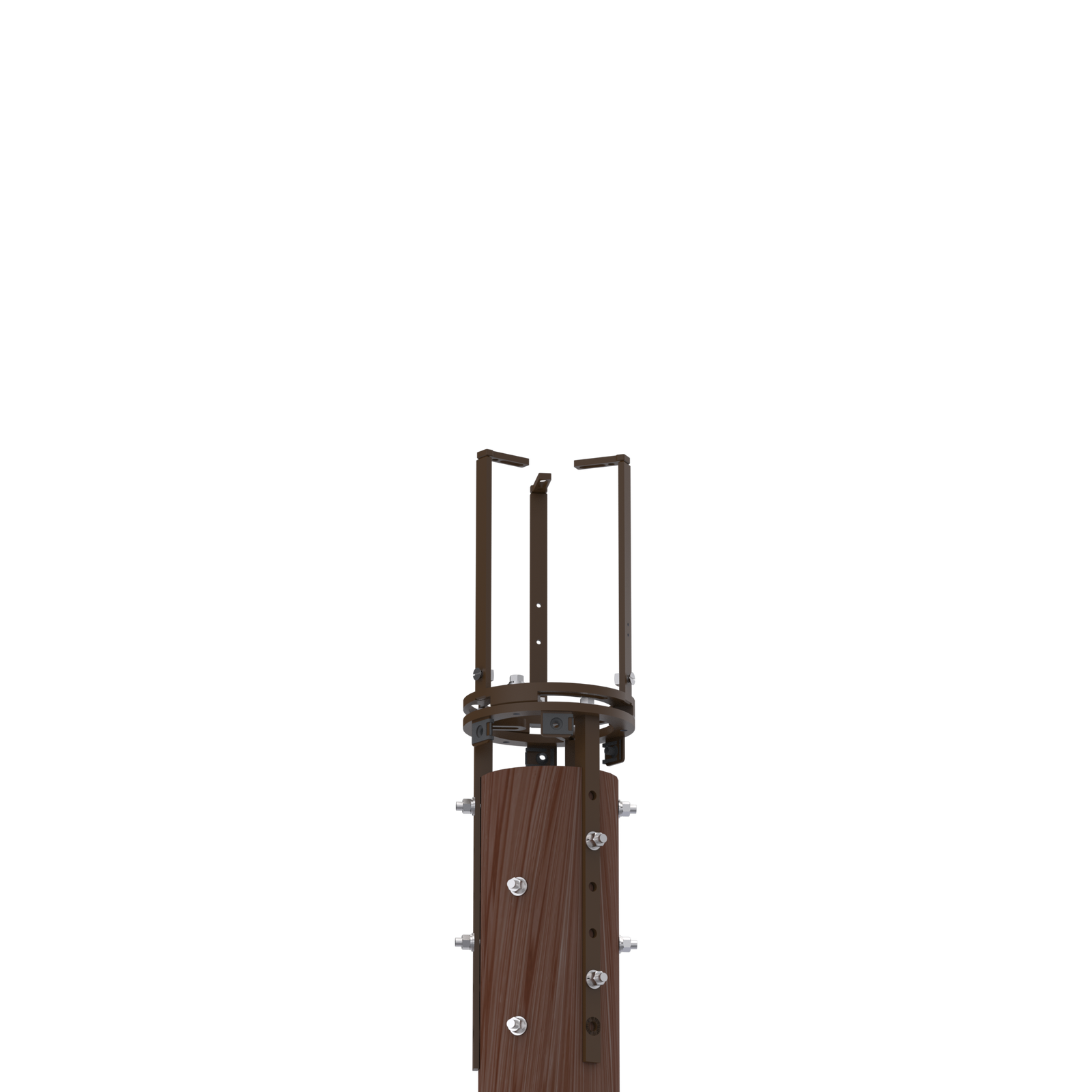

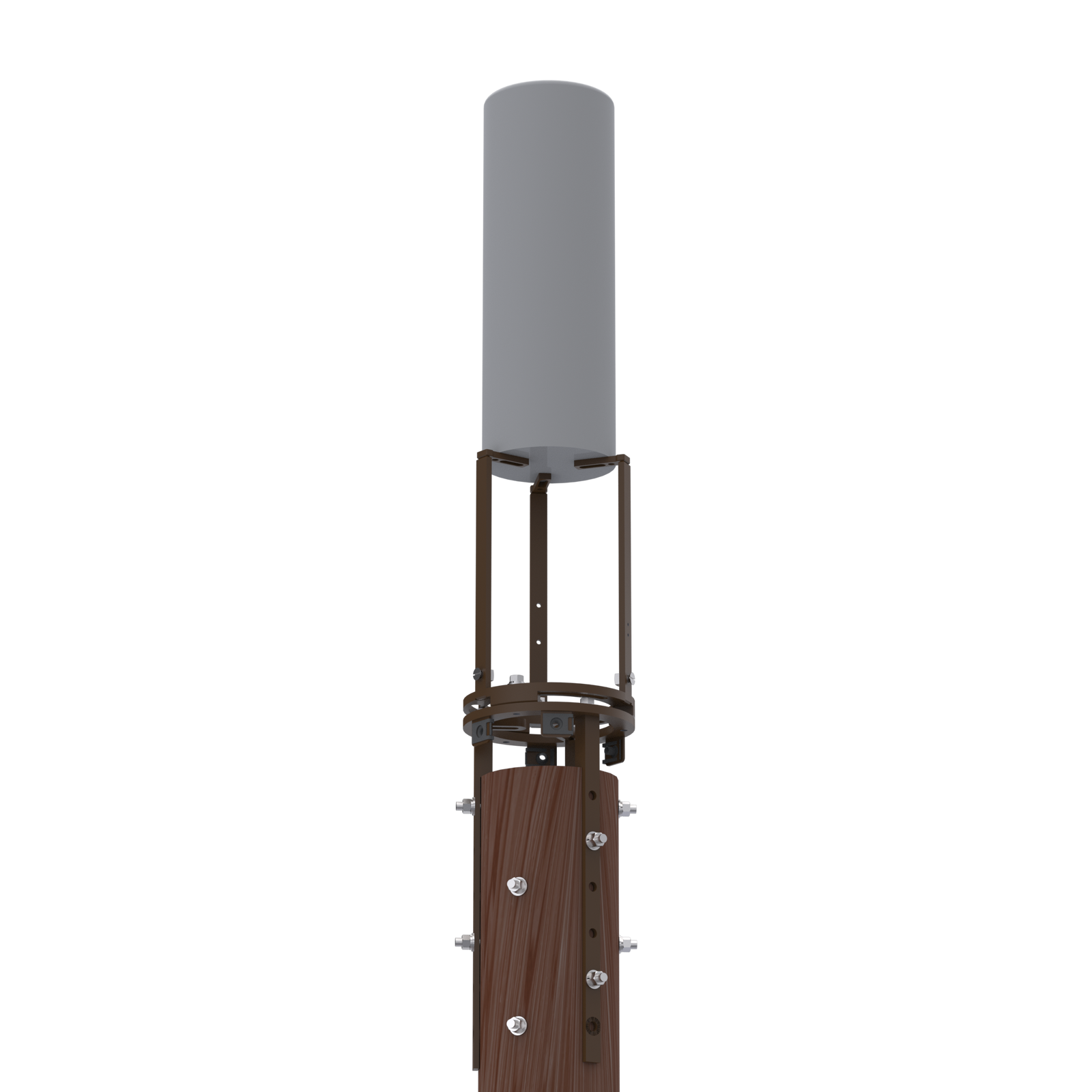

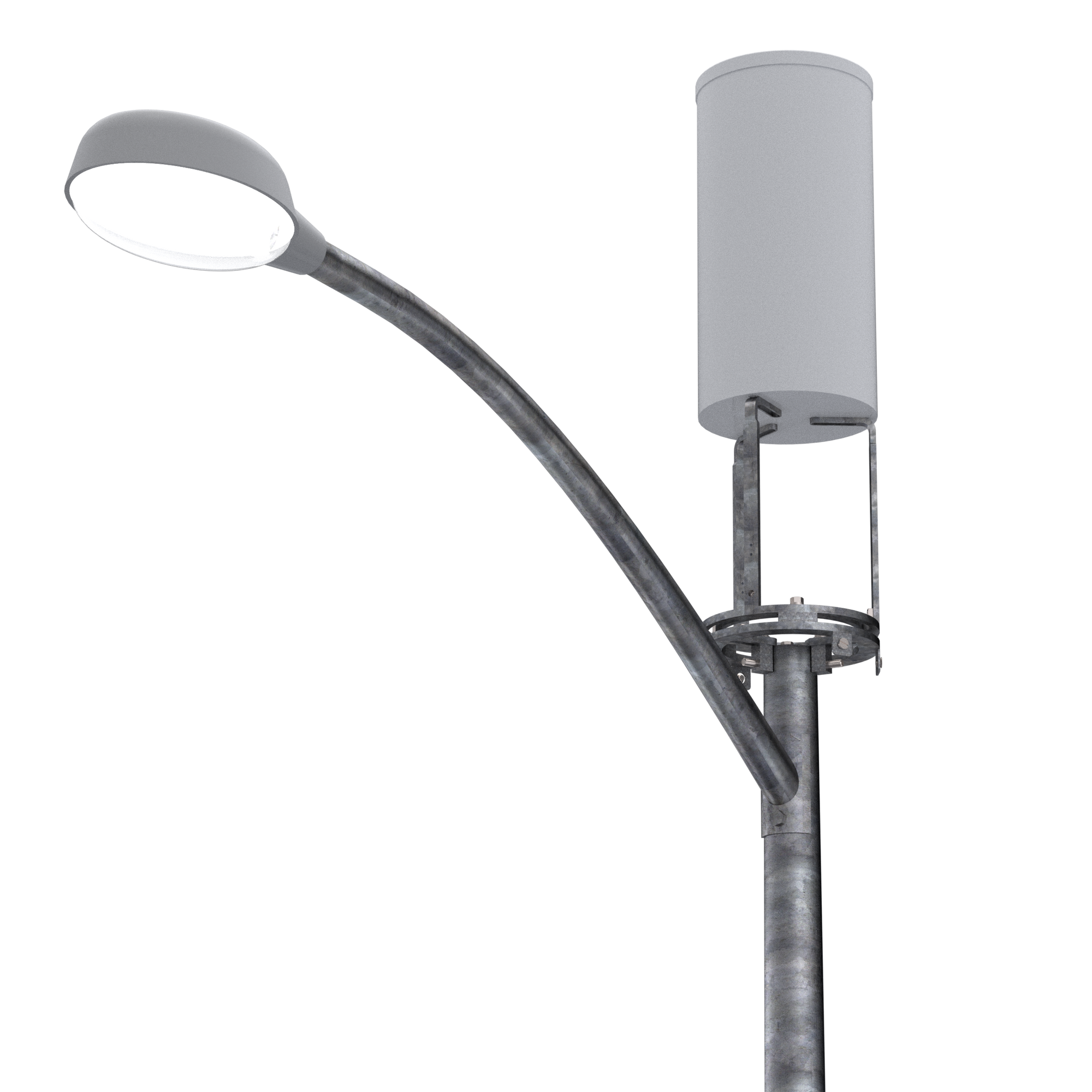

Universal Radio Mount Spec Sheet

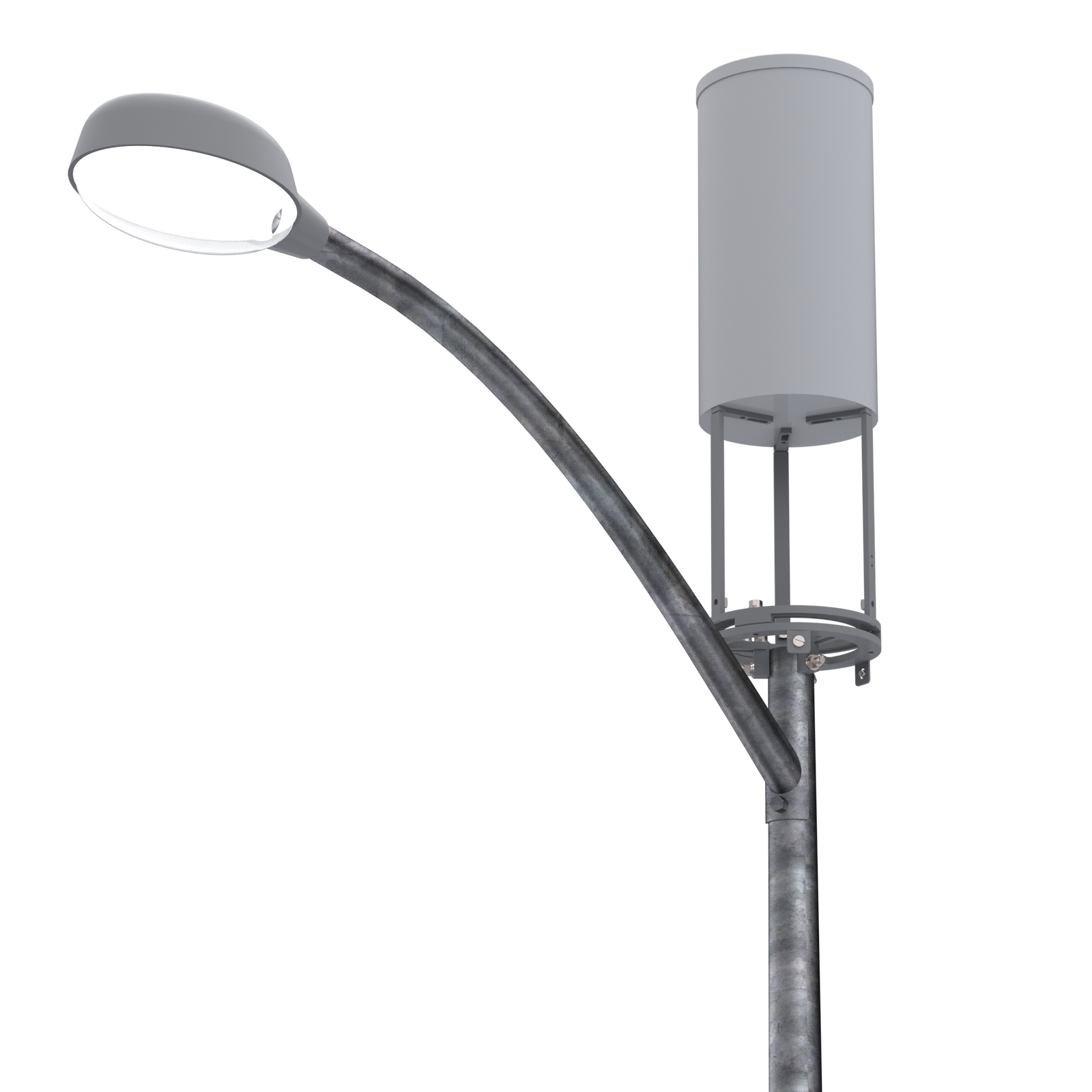

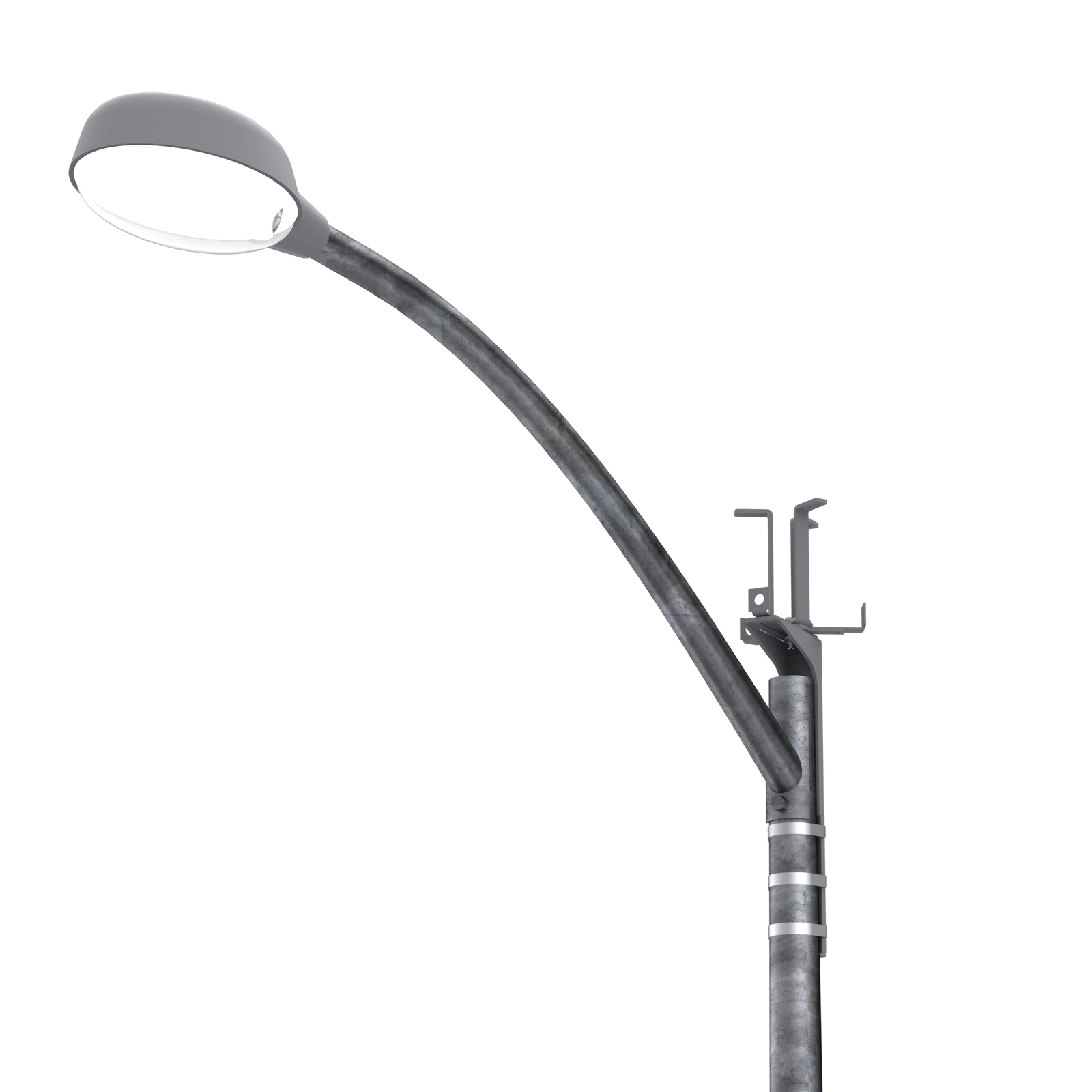

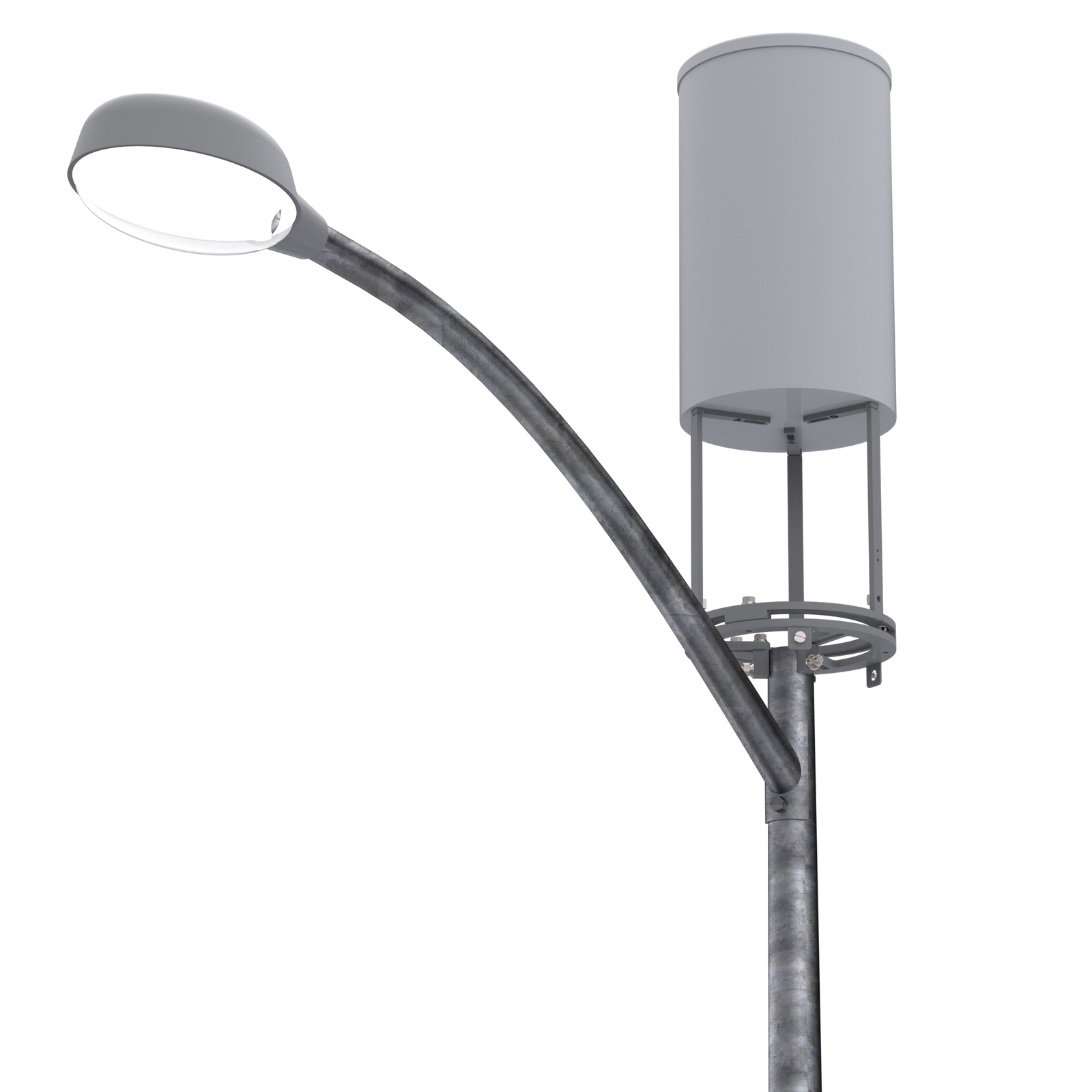

Assembly Includes:

• Universal 3" to 7" Lower Mount
• 14 3/4" Upper Cage
• 3 Attachment Brackets
• Includes all Mounting Hardware

Attaches to pole with 3 band straps or through-bolt 3/4" threaded rod wood poles.

Flip-flop adapter allows use with multiple antenna types.

Attachment points for radome come standard

Secondary attachments for lower skirt available

Single Arm Antenna Mount Spec Sheet

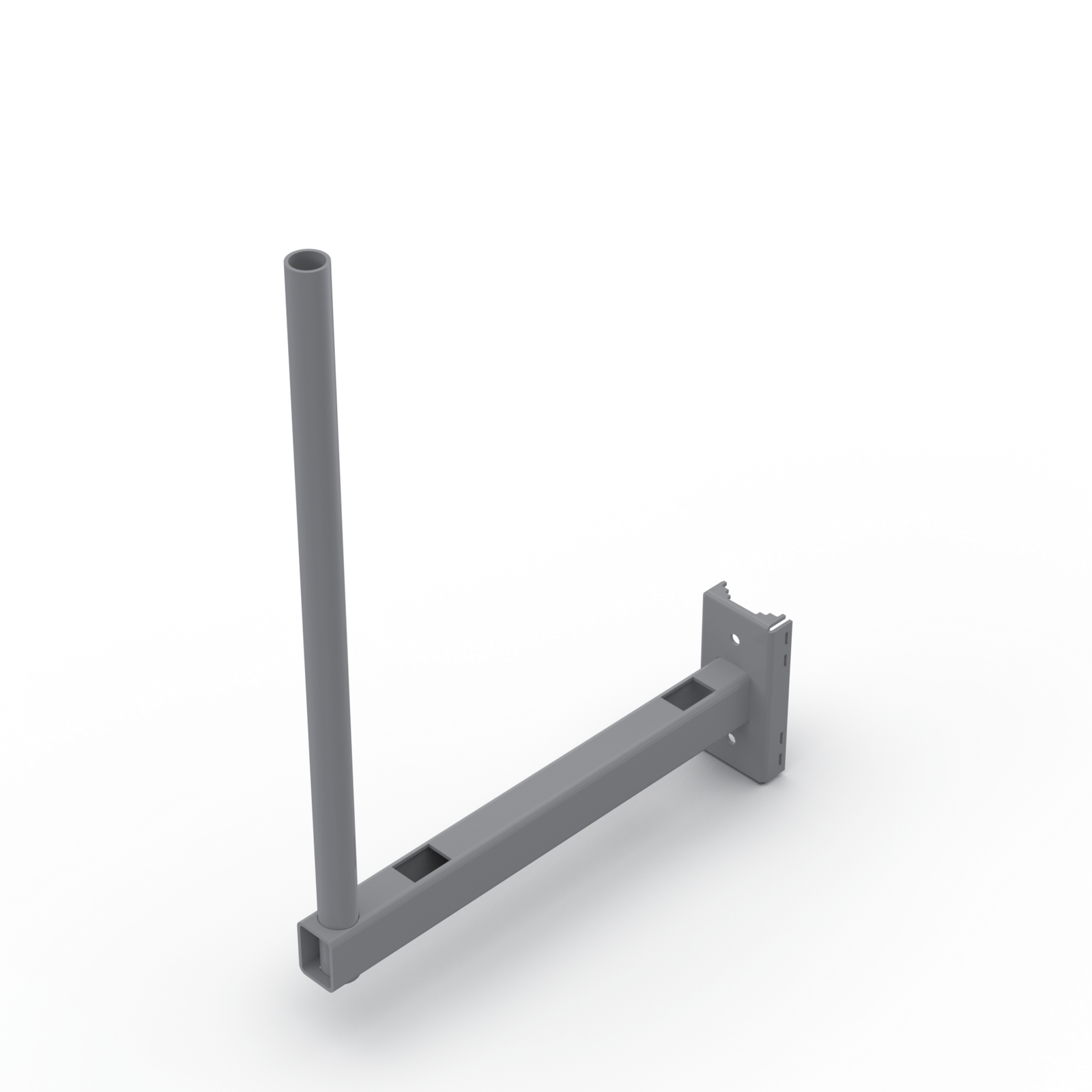

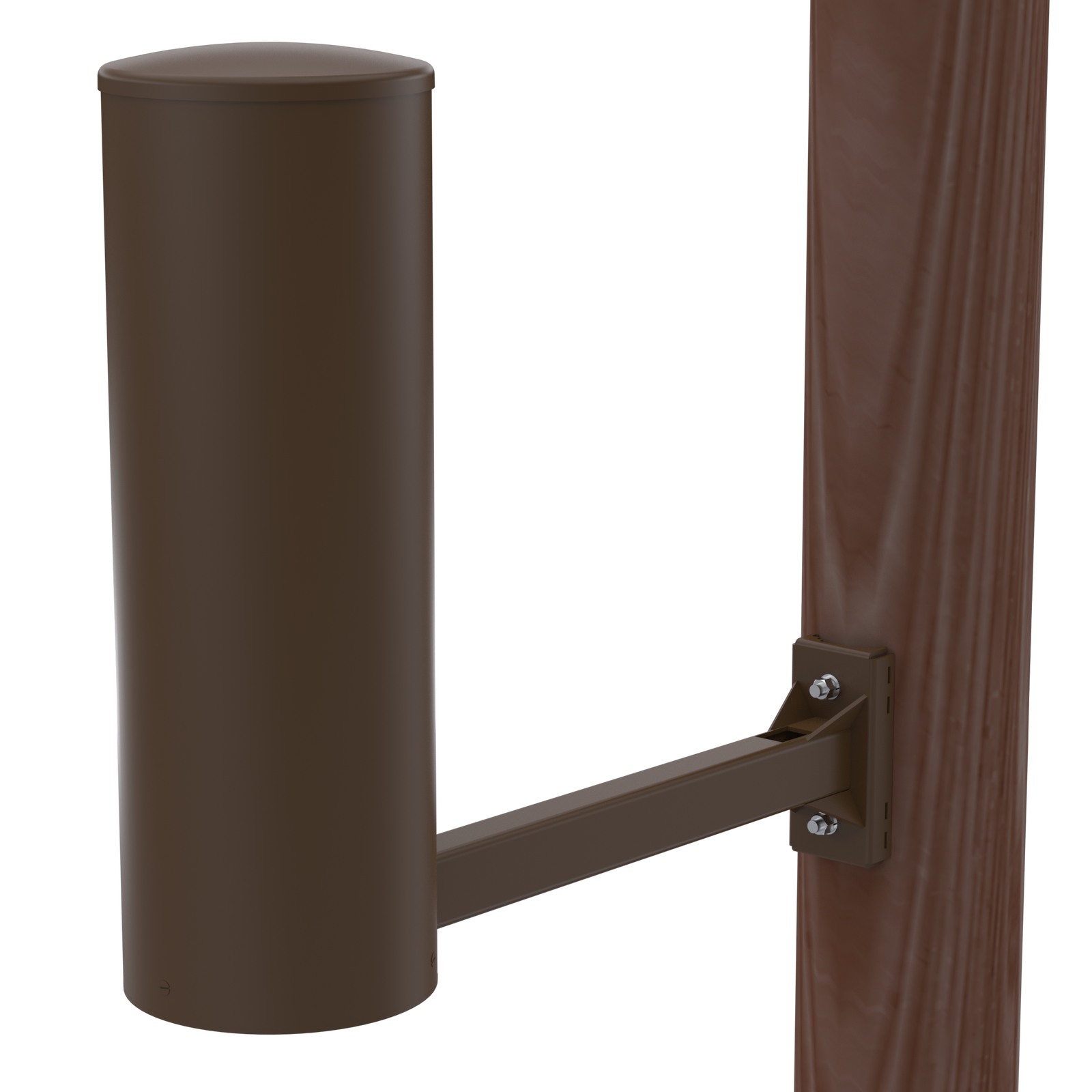

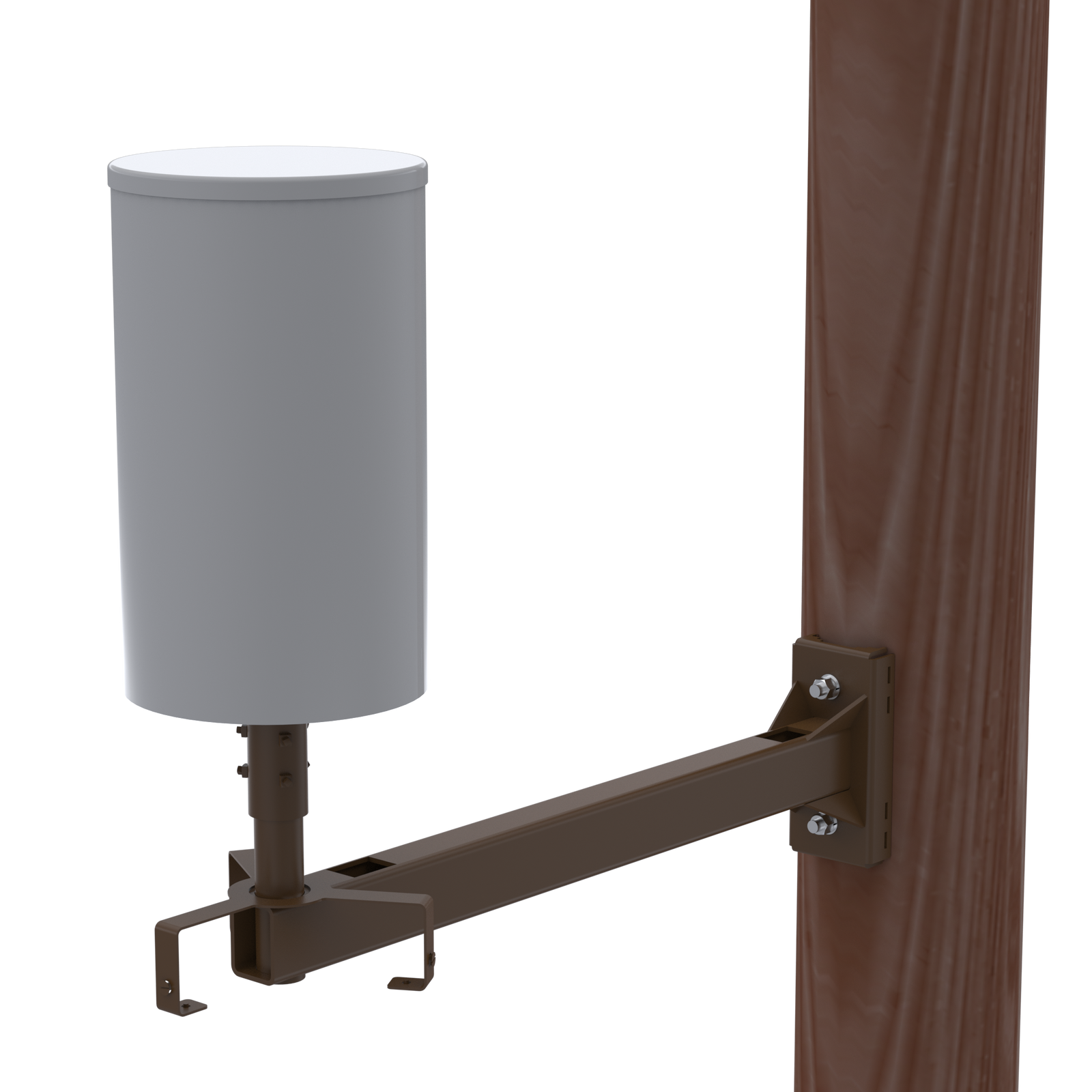

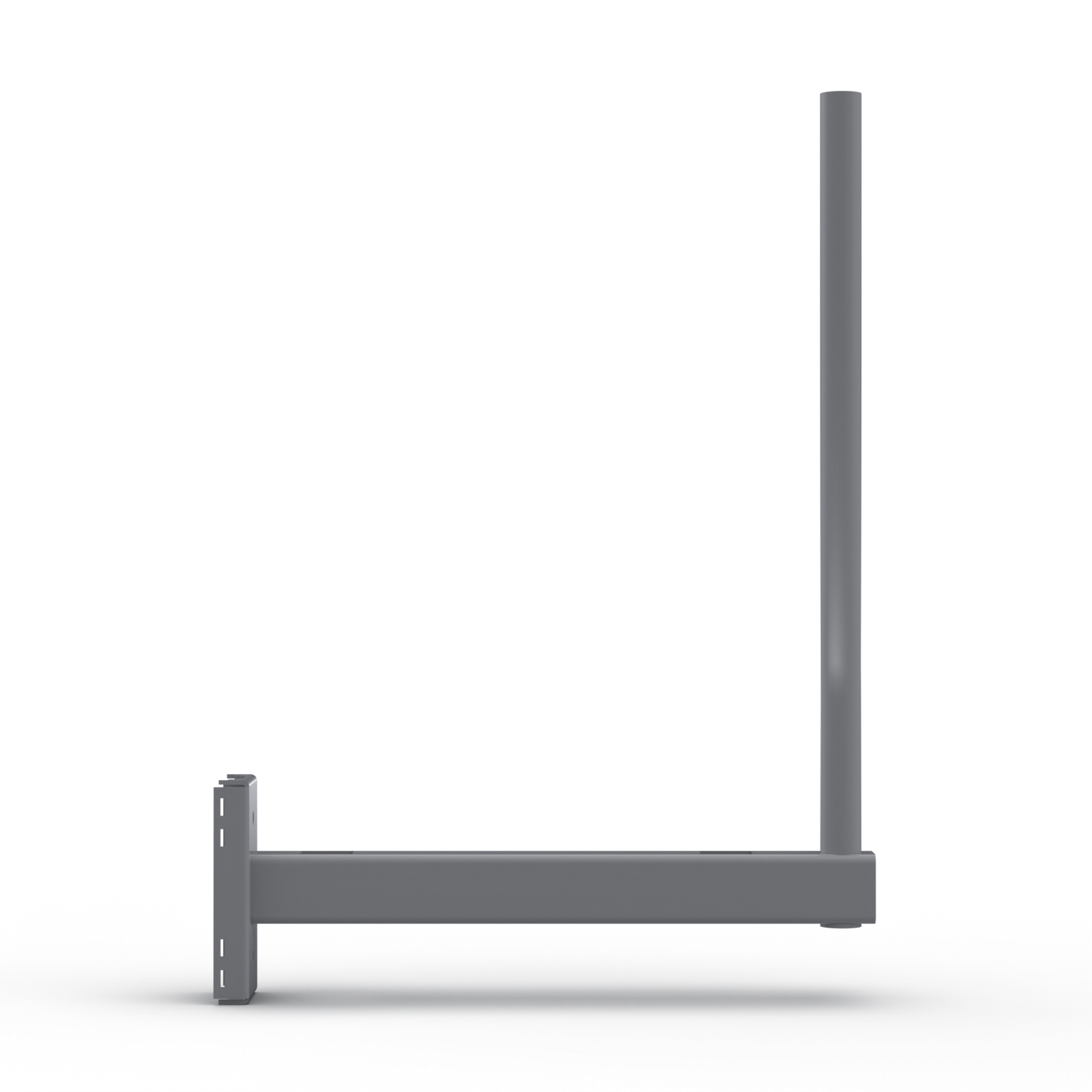

Our Side Arm Pole Mount comes with a 2” x 4’ pipe powder coated brown or grey. The standoff arm is 36” from the pole. It has a load capacity of up to 250 lbs supporting a wide range of antennas models up to 48”. Mounting hardware kits are included with ¾” x 2' hot dipped galvanized (HDG) all thread rod sized for all utility poles.

Side Arm Pole Mount Spec Sheet

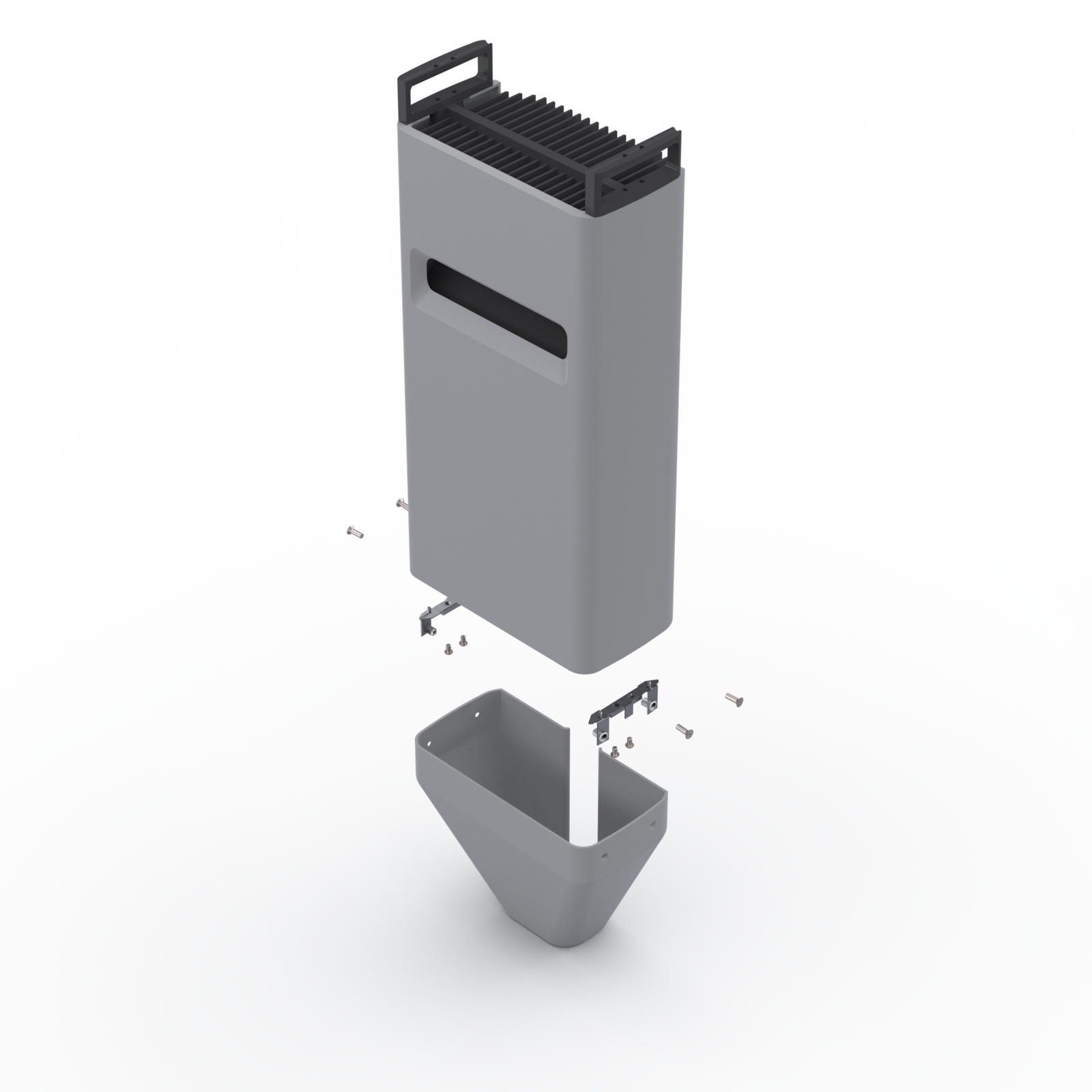

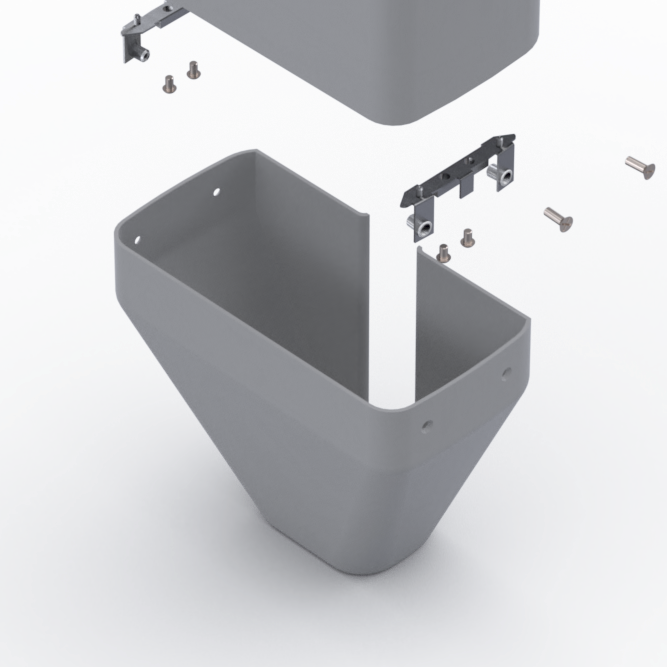

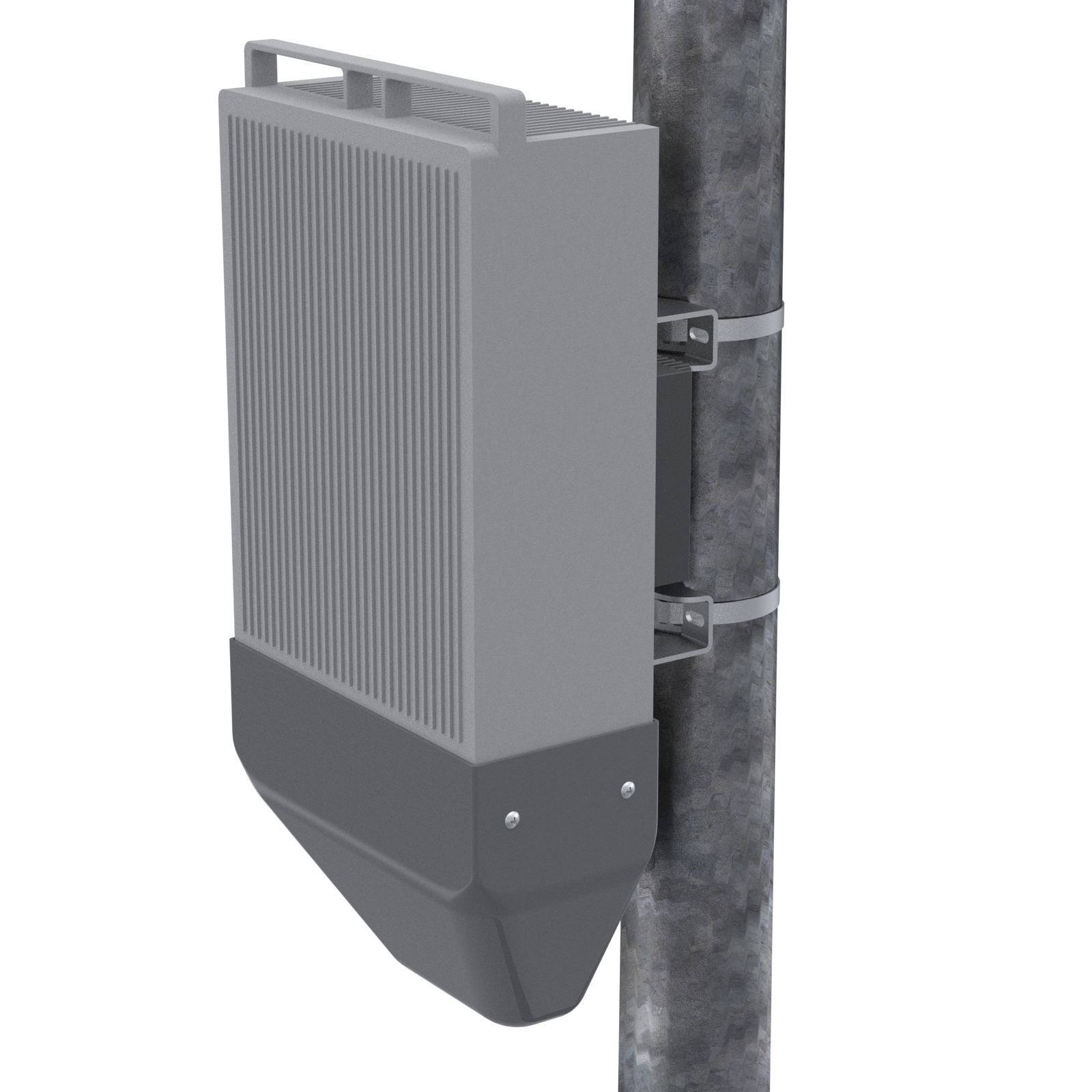

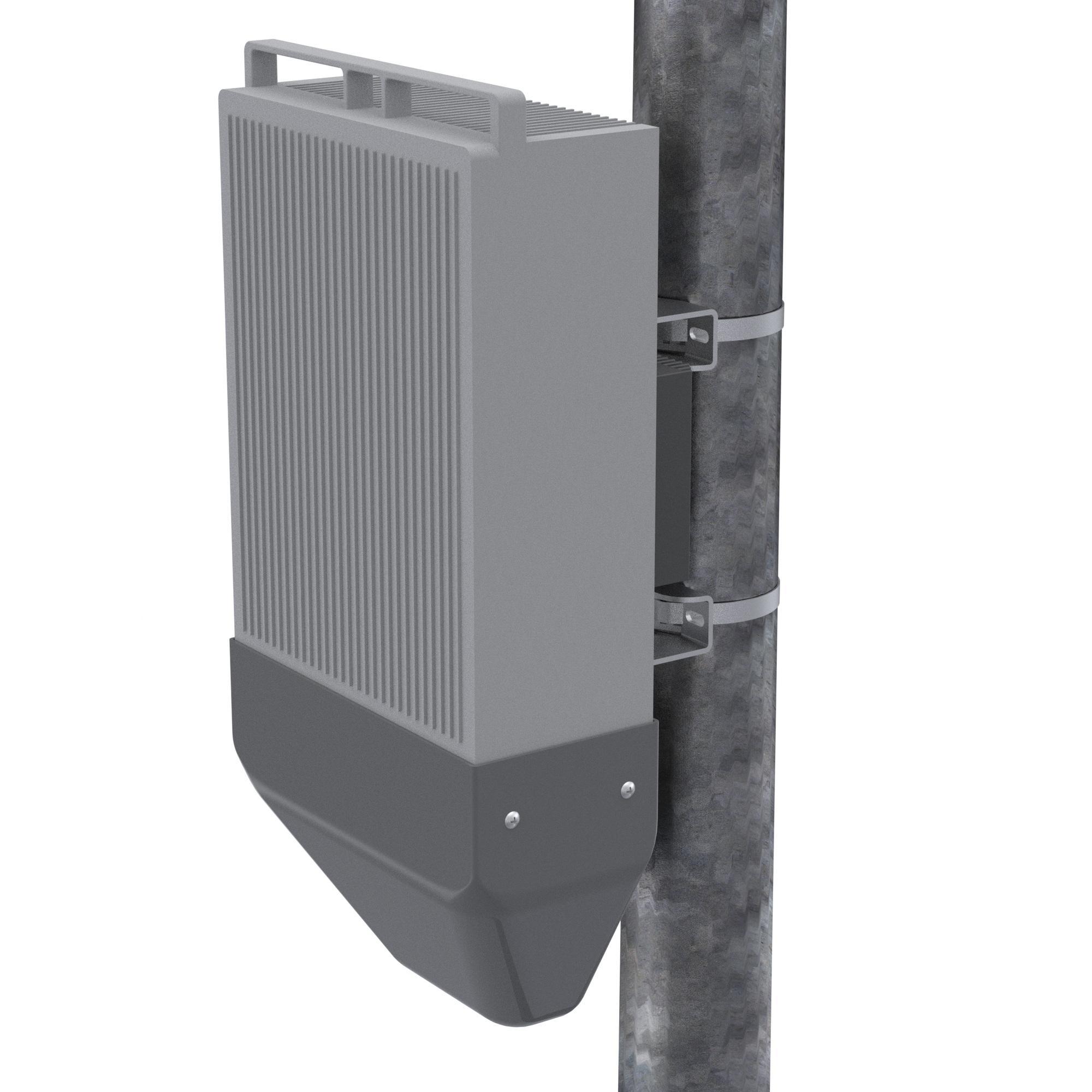

This shroud hides the lower lower RRUS-32 equipment and cables. The shroud mounts directly to the Ericsson RRUS-32 Unit. Includes all mounting hardware to attach to the bottom of the RRUS-32 radio.

RRUS-32 Spec Sheet

AMMTec Consultants, PLLC Engineered Solution PDF

* Nut provided by Electric Tech Construction
* Approval of installation by AMMTEC
* Approval of installation to include

1. Documentation of Bolt
2. Documentation of Installation Pattern
3. Documentation of Minimum Rod Extension
4. Documentation of Installation Performed by A Certified Installer

* AMMTEC to provide summary letter of approval of installation inspection to municipality.

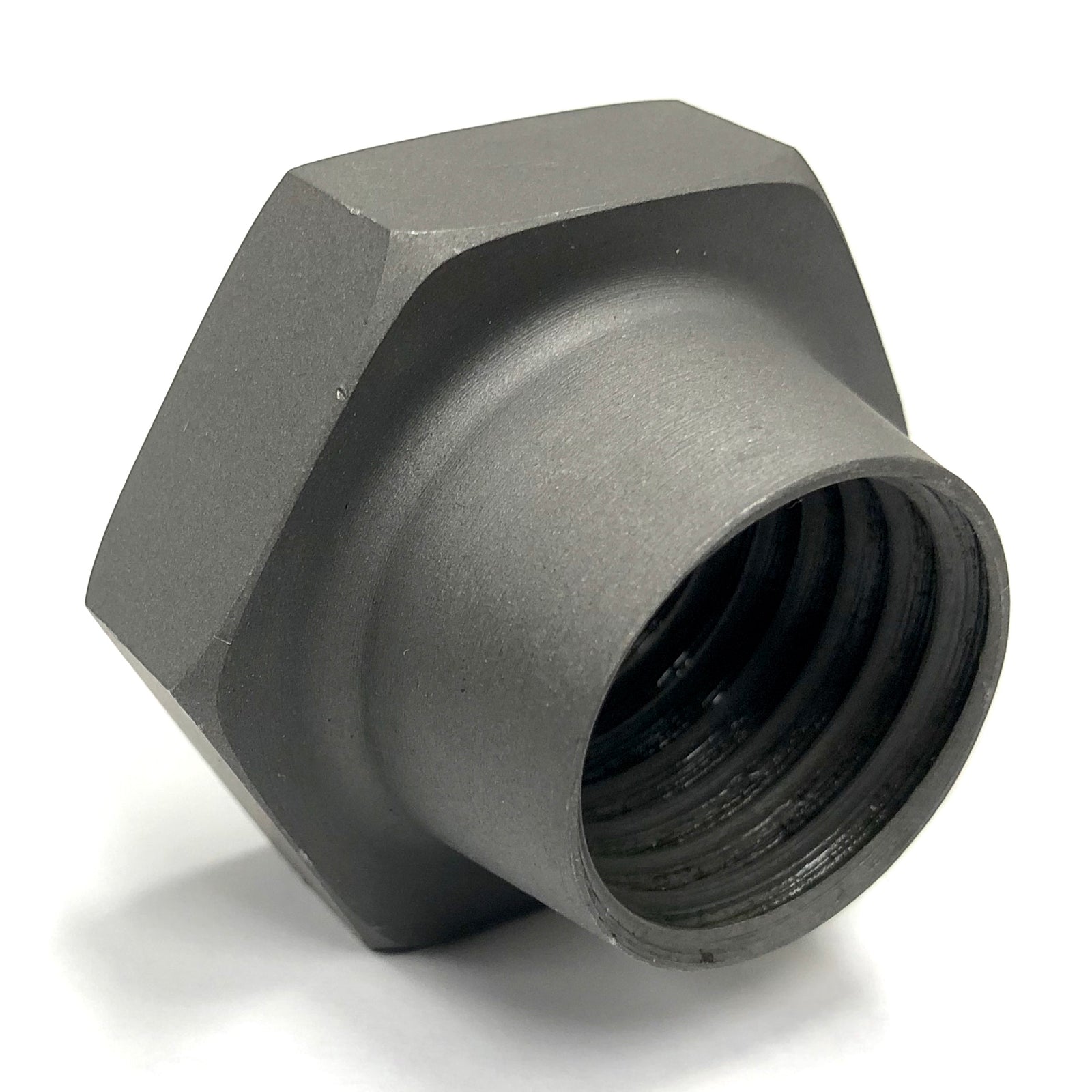

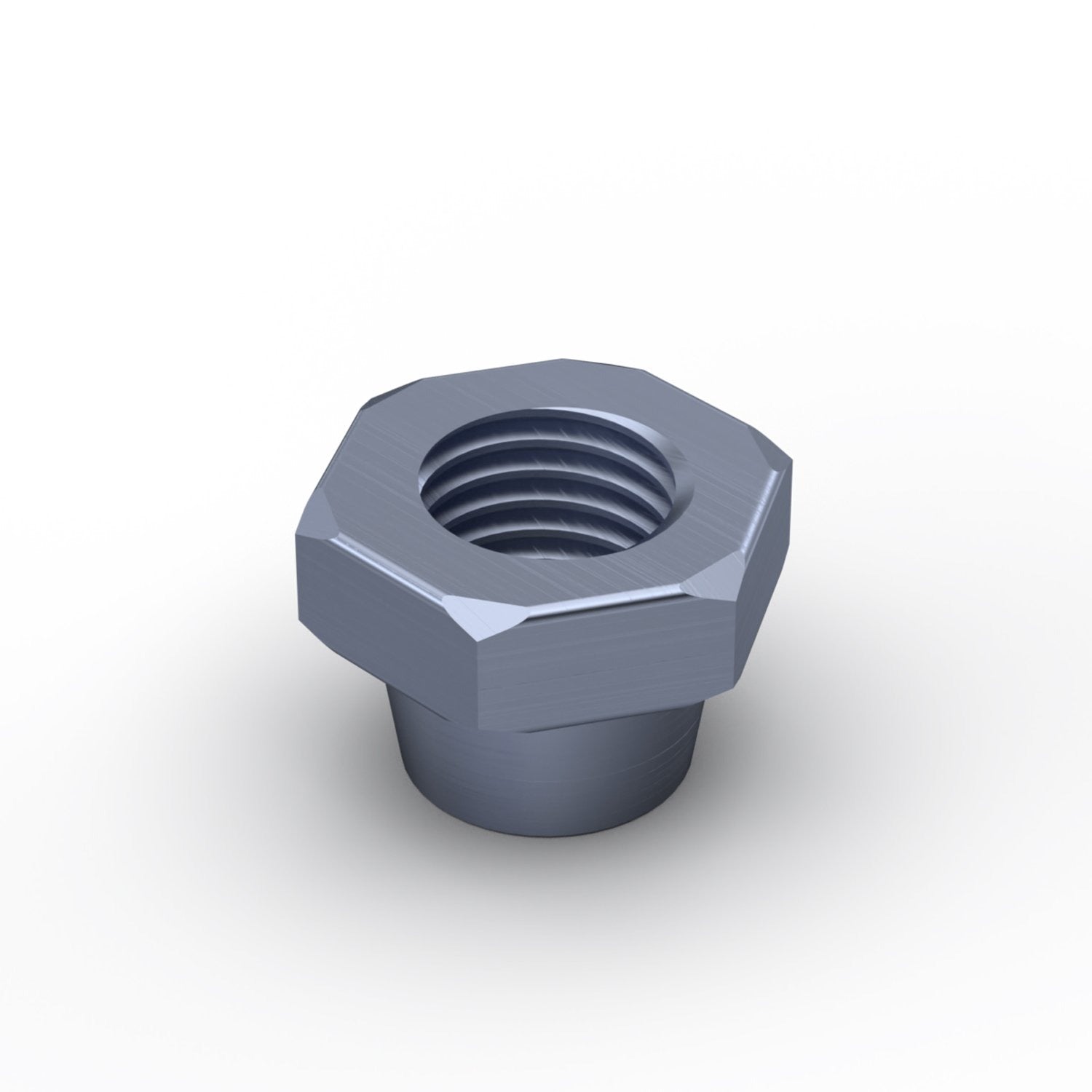

Allows nut to engage threaded rod above and below the baseplates's top plane

Lower hex head height brings existing light pole standards up to code stating requirements of 1 protruding thread on existing poles and 3 protruding threads on new poles.

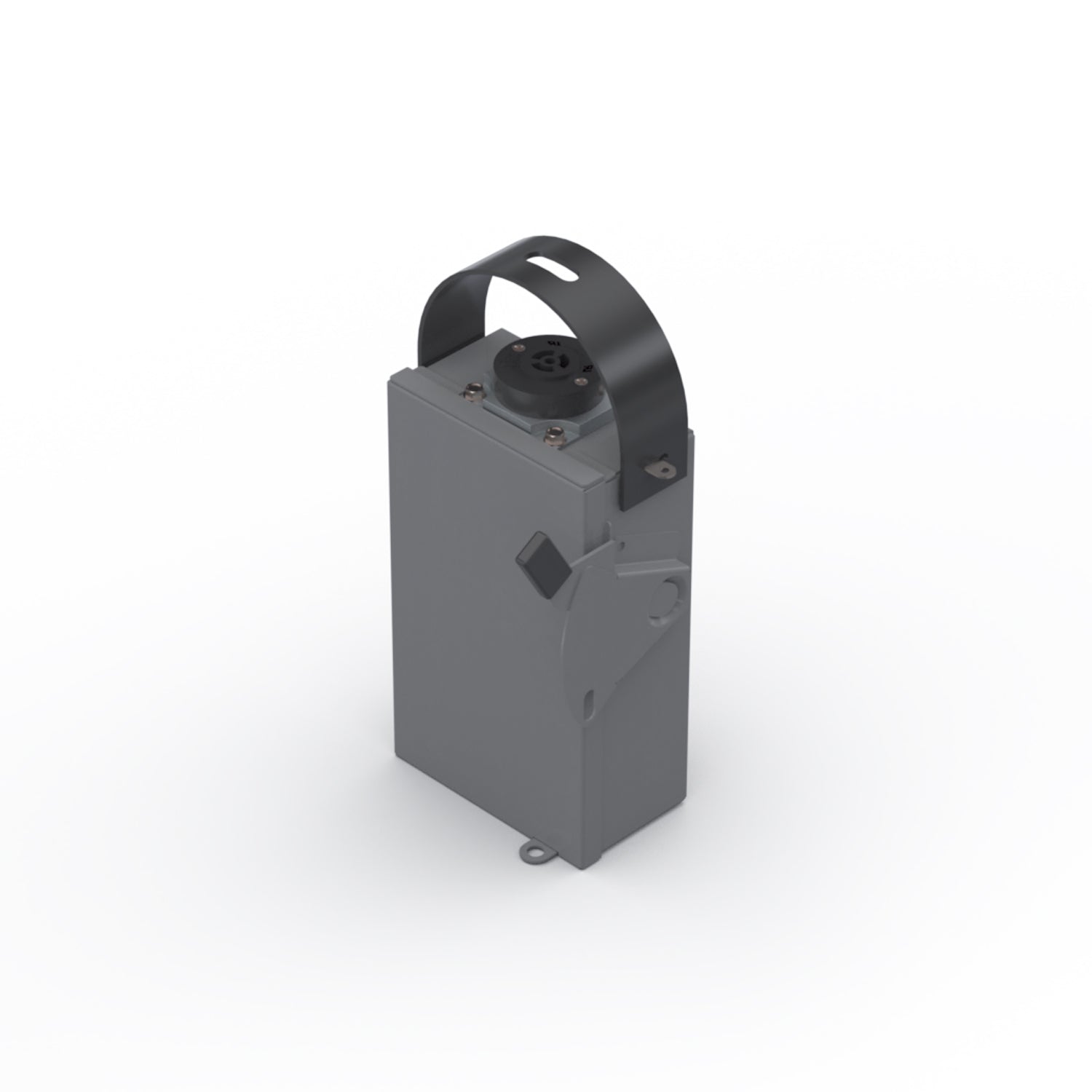

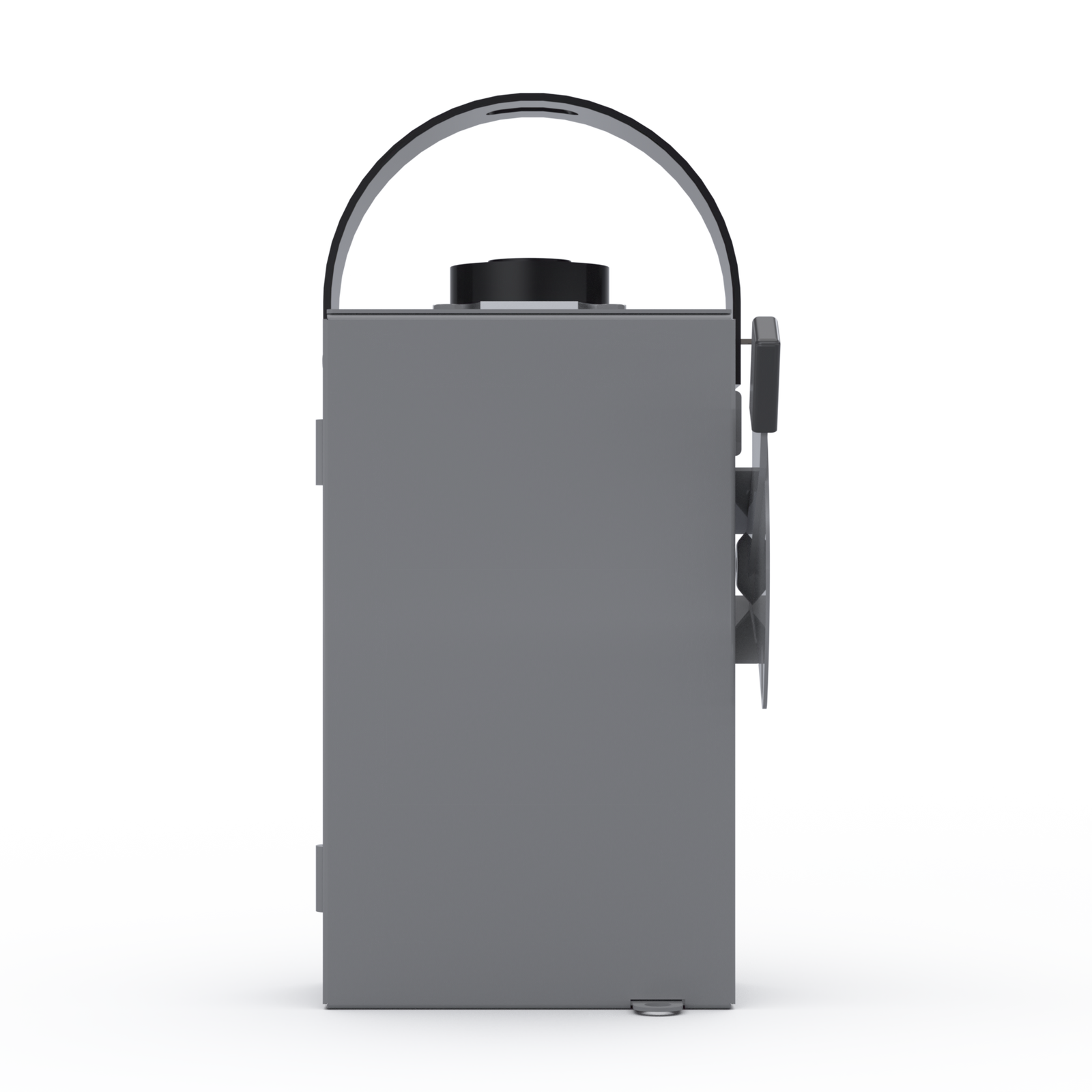

• Standard Disconnect with Top Mount for a PG&E Meter
• Riveted Weather Sealed Strap Latch to Mitigate Meter Theft
• Stainless steel mount provided with 3 banding locations
• The Smart Meter (not included) Is Rated Up To 5A Operation.
• 3-Pin Receptacle
• Ground/Bonding Lug

• NEMA 3R Enclosure

Meter Mount Disconnect Spec Sheet
